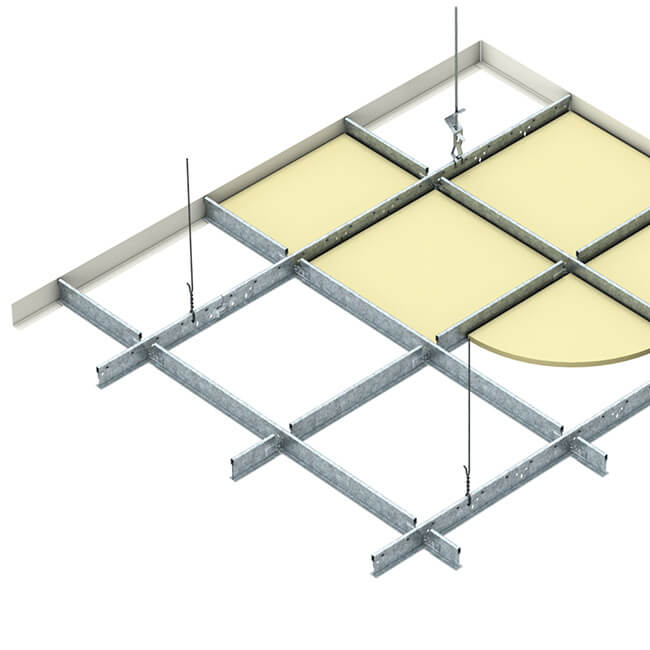

DONN® Exposed Grid Ceiling System

The Rondo DONN® Exposed Grid Ceiling System includes the popular 24mm face grid, also offering a more slimline 15mm face grid option to give designers an alternative grid appearance and installers a system they already know.

The well-known DONN® Quick Release Clips (QRC) are located on the ends of Rondo DONN® Cross Tees to enable fast and easy installations without the need for mechanical tools or fixing.

Transitions between exposed and concealed grid ceilings are also made possible with the Rondo DONN® Grid Ceiling System being fully compatible with our Rondo XPRESS® Drywall Grid Ceiling System.

To find a supplier in AUS, send an enquiry here.



PRODUCT FEATURES

  • INTRODUCTION TO OUR DONN® EXPOSED GRID CEILING SYSTEM

    The Rondo DONN® Exposed Grid Ceiling System provides the framework for a variety of lay-in tiles including; acoustic, perforated plasterboard, PVC laminated, and metal.

    Not only does the Rondo DONN® Exposed Grid Ceiling System include the popular 24mm grid, it also offers a more slimline 15mm grid option to give designers an alternative grid appearance.

    The well-known DONN® branded Quick Release Clips (QRC) are located on the ends of Rondo DONN® Cross Tees to enable fast and easy installations without the need for mechanical tools.

  • WHAT YOU'LL LIKE ABOUT OUR DONN® CEILING SYSTEM
    • Quick Release Clips – high tensile, allows for quick and easy installations
    • Lay-on Cross Tees resist twist and gapping
    • During installation, Cross Tees can be cantilevered and will not drop out due to their positive connections
    • Positive lock between Main Tee and Cross Tee is achieved without the need for mechanical tools or fixing
    • The DONN® 15mm Cross Tees include a patented centering device in the QRC Tab to ensure rebated and square edge Acoustic Panels are installed square
    • The DONN® 24mm Cross Tees come in three heights (38mm, 32mm and 24mm), two gauges (standard and heavy duty) and in white as standard, with black also available on enquiry

Resources

DESIGN MANUAL

DONN® Exposed Grid Ceiling System

Click below for the Design Manual

Download

PRODUCT DATA SHEET

DONN® Exposed Grid Ceiling System

Click below to download our Product Data Sheet:

DOWNLOAD

SEISMIC WIZARD

DONN® Exposed Grid Ceiling System

Click more for the wizard tool.

USE SEISMIC WIZARD

CAD FILES

(AU) DONN® Exposed Grid Ceiling System CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

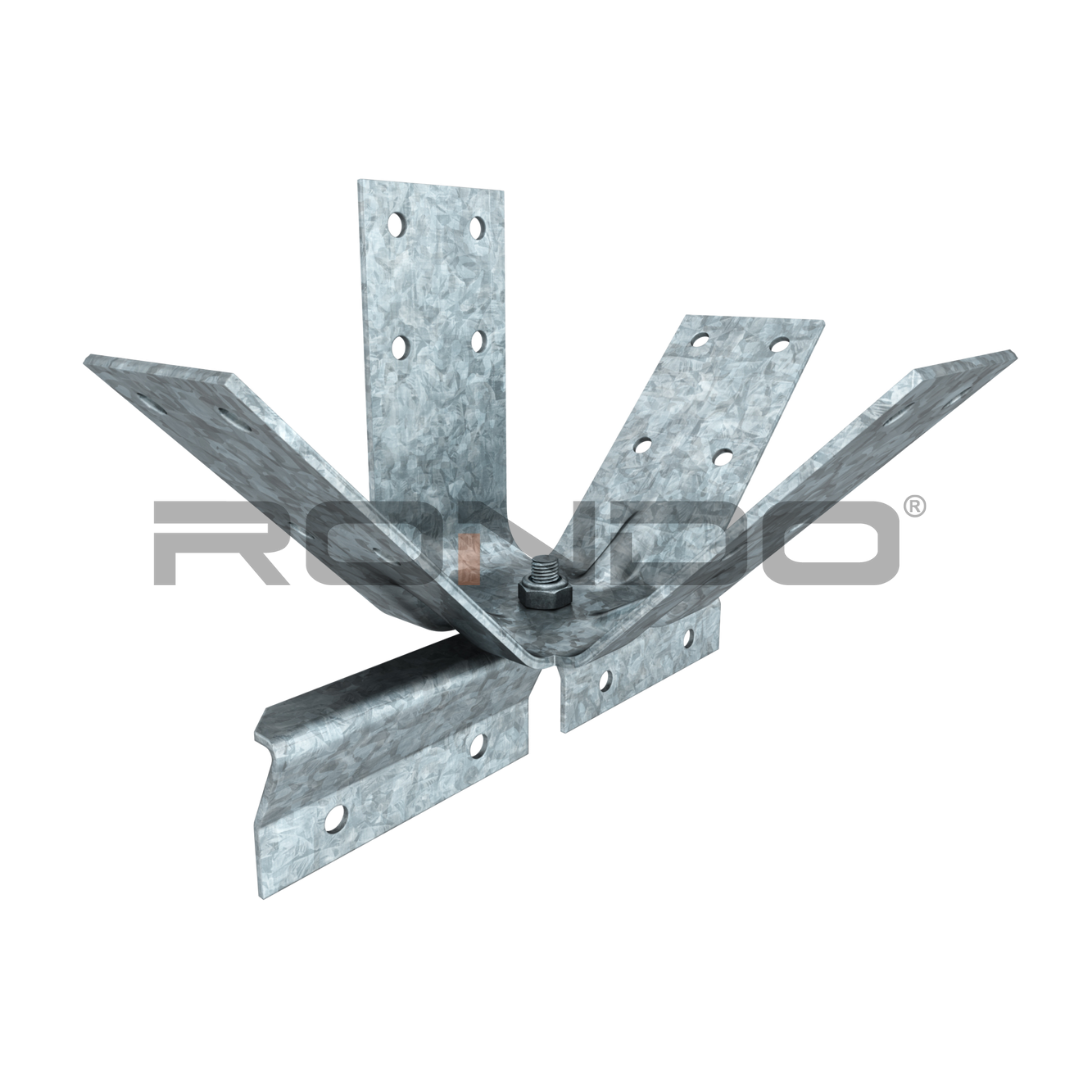

Components
