Panther® Access Panels

We have Access Panels to suit every situation. Whether you need a standard Access Panel, or a specialised architectural panel, PANTHER^® Access Panels are the perfect choice.

Designed and tested to meet the requirements of the Building Codes of Australia and New Zealand for both domestic and commercial installations, our standard range features sound-rated and metal-face budget access panels that can be installed in both steel stud and masonry walls and suspended ceiling systems. Our fire-rated access panels can also be used in suspended ceiling systems.

Although the panels come in standard sizes, custom sizes can be ordered.

PRODUCT FEATURES

30% Lighter
Standard Sound Rated Polymer Frames are 30% lighter
Wide Variety of Locks
Budget, standard, cam lock, touch latch and coin lock
Sound Rated
Suitable for sound rated applications (RW30)

Introduction to our Panther® Access Panels

Each access panel has been rigorously tested for both quality and performance, particularly in regards to fire ratings and acoustic ratings. The Sound Rated Access Panels have a polymer frame unique to Rondo which is 30% lighter and means they are easier and quicker to install, saving time on site.

In addition to our standard range, we can also supply specialised ‘architectural’ Access Panels via order to suit specific projects. This includes panels with polymer doors and polymer frame for wet areas, or panels for high security facilities, such as prisons, that have galvanised or stainless steel doors and specialised locking systems.

Access Panels with doors to match perforated plasterboard ceilings, panels that can incorporate ceramic tiles and even panels which can integrate specialised ceiling or wall finishes, are also available by order.
ADVANTAGES
- Standard Sound Rated panels made with a unique polymer frame; 30% lighter.
- Selection of surround finishes (Flanged or Set Bead).
- Wide Variety of Locks, key budget lock, numbered key cam, concealed touch latch and coin lock.
- Standard Sound Rated Panels can be face fixed initially, to achieve faster and safer installation.
Fire Reports for Fire Rated Access Panels

Click here to view the fire test report for Fire Rated Access Panels

INSTALLATION MANUAL

Panther® Access Panels

Click below for the downloadable and interactive versions:

PRO SERIES INTERACTIVE PDF

Pro Series E1 - PANTHER® FIRE-RATED ACCESS PANELS DOWNLOAD

FIRE TEST REPORT

Panther® Fire-Rated Access Panels

Click below to view the fire test report for our Panther® Fire-Rated Access Panels

View Fire Test Report

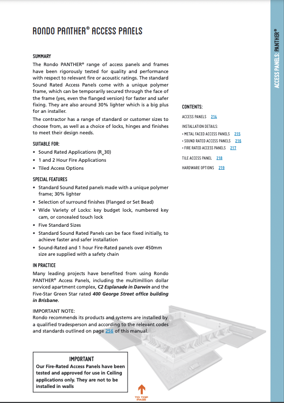

DESIGN MANUAL

Panther® Fire-Rated Access Panels

Click below for the Design Manual

DOWNLOAD

CAD FILES

Panther® Access Panels CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components

IMAGE	PART NUMBER	CAD FILE		DESCRIPTION
	3-Legged Plastic Key			3-Legged Plastic Key This plastic key consists of a 6.6mm hexagonal key, 8.0mm flat head key and an 8.0mm square bar key.
	Budget Lock			Budget Lock Standard Lock for 1 hour Fire-Rated Access Panels *Note: FRAP square key lock back sealed
	Cam Lock			Cam Lock Alternative keyed lock for Sound Rated Access Panels only.
	Coin Lock			Coin Lock Suitable for Metal Faced Access Panels
	FRAPHD30BLFE			300mm x 300mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD30BLSB			300mm x 300mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD45BLFE			450mm x 450mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD45BLSB			450mm x 450mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD53BLFE			530mm x 530mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD53BLSB			530mm x 530mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD60BLFE			600mm x 600mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPHD60BLSB			600mm x 600mm Fire Rated Access Panel with Hinged door for 1hr Walls and 1 and 2hr Ceiling - Budget Lock - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF30FESF			300mm x 300mm Fire Rated Access panel with Screw Fixed door for 1 and 2hr Walls - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF30SBSF			300mm x 300mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF45FESF			450mm x 450mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF45SBSF			450mm x 450mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF53FESF			530mm x 530mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF53SBSF			530mm x 530mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF60FESF			600mm x 600mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	FRAPSF60SBSF			600mm x 600mm Fire Rated Access Panel with Screw Fixed door for 1 and 2hr Walls - Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	HP-51			Rw51 High Performance Access Panel – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 *Special Order
	MFAP30FE			300mm x 300mm Slimline Metal–Face Door – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP30SB			300mm x 300mm Slimline Metal Face Door Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP45FE			450mm x 450mm Slimline Metal–Face Door – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP45SB			450mm x 450mm Slimline Metal Face Door – Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP55FE			550mm x 550mm Slimline Metal–Face Door – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP55SB			550mm x 550mm Slimline Metal Face Door – Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP60FE			600mm x 600mm Slimline Metal–Face Door – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	MFAP60SB			600mm x 600mm Slimline Metal Face Door – Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order
	Perforated Plasterboard Panels			Perforated Plasterboard Panels The Rondo Perforated Plasterboard Access Panels is a fully customised panel with a steel or polymer frame. The door is made from the chosen plasterboard and it is provided with a set bead and a touch lock.
	Plastic Lock			Plastic Lock for Standard Sound-Rated Access Panels This plastic lock is provided on all standard Sound Rated Access Panels
	Security Access Panel			Security Access Panel Rondo Security Access Panels are specifically designed for applications that require a strong and secure installation. The frame and door are made from Galvanised Steel (1.90 and 0.90BMT respectively) and the inner and outer door skins are welded for added security.
	SRAP3030BLFE			300 x 300 Budget Lock – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order in an aluminium frame
	SRAP3030BLS			300 x 300 Budget Lock – Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order in an aluminium frame
	SRAP3045BLFE			450 x 450 Budget Lock – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order in an aluminium frame
	SRAP3045BLSB			450 x 450 Budget Lock – Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order in an aluminium frame
	SRAP3053BLFE			530 x 530 Budget Lock – Feathered Edge Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order in an aluminium frame
	SRAP3053BLSB			530 x 530 Budget Lock – Set Bead Stock Pack: 1 \| Sub Pack: 1 Custom Sizes are also available and made to order in an aluminium frame
	Stainless Steel Access Panel			Stainless Steel Access Panel This specialised panel is made from 1mm thick stainless steel with a flanged edge detail. The door is made from 16mm MDF that is clad on the face and around the edges with similar 1mm thick stainless sheet.
	Tile Access Panel			Tile Access Panel For use in areas where access to service trades are required. *Special Order for Tile Panels (tiles are not supplied)
	Touch Latch			Touch Latch Supplied for Sound Rated Access Panels. Maximum Panel Size is 600 x 600mm
	Wet Area Access Panel (Flanged Edge)			Wet Area Access Panel - Flanged Edge These panels are made with a advanced polymer board with a polymer frame making it fully washable and suitable for wet areas.
	Wet Area Access Panel (Set Bead)			Wet Area Access Panel - Set Bead These panels are made with advanced polymer board with a polymer frame making it fully washable and suitable for wet areas.
