EXANGLE® Render & Texture Beads

Rondo EXANGLE^® Render & Texture Beads are designed to give a bonding key to the finishing cements used at corners and abutments whilst also reducing the risk of cavities. The range and sizes available will suit all standard render and texture applications.

PRODUCT FEATURES

Stainless Steel
Suitable for outdoor render applications
Zinc and powder-coated
Maximum protection
Various range and sizes
Available to suit standard render and texture applications

Introduction to our EXANGLE® Render & Texture Beads

Rondo Exangle^® RT finishing sections are designed to give a bonding key to the finishing cements used at corners and abutments whilst also reducing the risk of cavities. The range and sizes available will suit all standard render and texture applications.
ADVANTAGES
- Stainless Steel SR02 for outdoor render applications.
- 10 year warranty.
- Selected products are zinc coated and powder coated for maximum protection.
REVEAL BEADS

We supply Reveal Beads in a variety of widths that offer a strong, straight and clean finish to window openings that require internal trimming.

Our Reveal Beads are cold rolled from 0.9mm Zincanneal steel and are able to withstand harsh UV rays without cracking or breaking down. They incorporate a perforated leg for setting into the surrounding wall lining and can be painted over to match the wall finish.

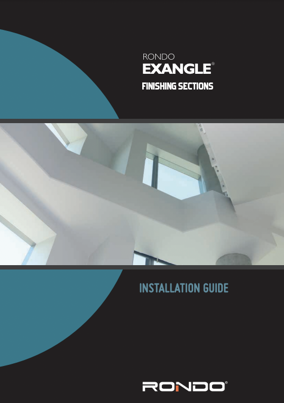

INSTALLATION GUIDE

EXANGLE® Render & Texture Beads

Click below for the official Installation Guide

Download

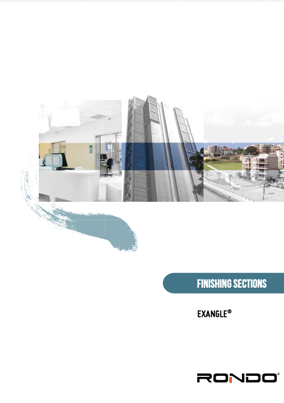

PRODUCT DATA SHEET

EXANGLE® Render & Texture Beads

Click below to download our Product Data Sheet:

Download

PROJECTS

Rondo Projects

Click below to view our projects:

VIEW RONDO PROJECTS

CAD FILES

EXANGLE® Render & Texture Beads CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components

IMAGE	PART NUMBER	CAD FILE		DESCRIPTION
	EP17			Render Stopping Angle for 7.5mm to 8mm Board - Z200 Powder Coat BMT: 0.40 \| Stock Pack: 100 \| Sub Pack: 20 Special Order Length: 3000mm
	EP32			90° Expanded External Corner Bead - Z200 Powder coated BMT: 0.40 \| Stock Pack: 480 \| Sub Pack: 20 Special Order Length: 3000mm
	EP50			Shadowline Stopping Angle - 10mm Recess - Z200 Powder Coat BMT: 0.40 \| Stock Pack: 500 \| Sub Pack: 20 Special Order Length: 3000mm
	ER11			Render Stopping Bead to suit 10mm Render - Z200 Powder Coat BMT: 0.40 \| Stock Pack: 100 \| Sub Pack: 20 Special Order Length: 3000mm
	R01			90° External Corner Bead - 4.5mm Radius BMT: 0.50 \| Stock Pack: 156 \| Sub Pack: 6 Available Length: 3000mm Special Order Lengths: 2400mm, 2800mm
	R02			90° External Corner Bead - 2.5mm Radius BMT: 0.50 \| Stock Pack: 220 \| Sub Pack: 10 Available Lengths: 2400mm, 2800mm, 3000mm
	R05			90° Bullnose External Corner Bead - Perforated - 10mm Radius BMT: 0.50 \| Stock Pack: 200 \| Sub Pack: 10 Available Length: 3000mm
	R06			90° Bullnose External Corner Bead - Perforated - 22mm Radius BMT: 0.50 \| Stock Pack: 100 \| Sub Pack: 10 Special Order Length: 3000mm
	R11			Render Stopping Bead to suit 10mm Render BMT: 0.40 \| Stock Pack: 400 \| Sub Pack: 20 Available Length: 3000mm Special Order Lengths: 2400mm, 2800mm
	R50			Shadowline Render Stopping Bead - 10mm Recess to suit 10mm Render BMT: 0.40 \| Stock Pack: 200 \| Sub Pack: 10 Available Length: 3000mm
	SR02			90° Stainless Steel Expanded External Corner Bead - 2.5mm Radius BMT: 0.45 \| Stock Pack: 220 \| Sub Pack: 10 Available Lengths: 3000mm
