INSPIRE® Architectural Plastering Beads

The Rondo INSPIRE® Architectural Plastering Beads range includes our End Cap and Reveal Beads for modern and flush finishes.

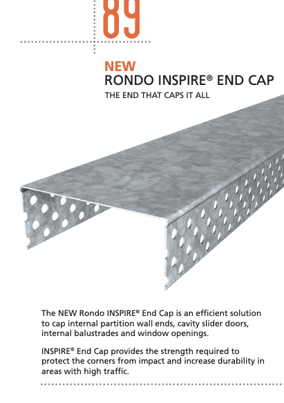

The NEW Rondo INSPIRE^® End Cap is an efficient solution to cap internal partition wall ends, cavity slider doors, internal balustrades and window openings. It provides the strength required to protect the corners from impact and increase durability in areas with high traffic. Save time on-site with our effective, easy to install and economical solution that easily slides onto the ends of plasterboard for capping, removing the need for having to install two plastering beads.

Rondo INSPIRE® Reveal Beads are cold rolled from Zincanneal steel and are able to withstand harsh UV rays without cracking or breaking down. They incorporate a perforated leg for setting into the surrounding wall lining and can be painted over to match the wall finish. Our Reveal Beads come in a variety of widths that offer a strong, straight and clean architectural finish to window openings that require internal trimming.

PRODUCT FEATURES

Architectural Finish
Easily set into the surrounding wall lining
Zincanneal Steel
Withstands harsh UV rays without cracking or breaking down
Various sizes available
Available in a range of different sizes

INSPIRE® END CAP ADVANTAGES
- Zincanneal® G2S steel for durability and resistance to the elements
- Reduced installation time by replacing two beads with one cap
- Reduced compound usage as a result of less joints
- Available in a range of different sizes to suit different stud sizes and wall configurations

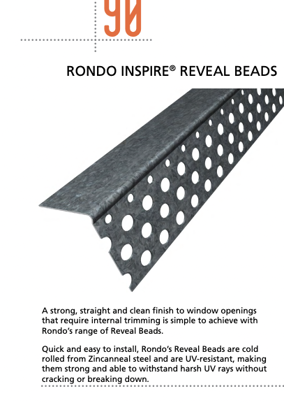

INSPIRE® REVEAL BEAD ADVANTAGES
- Zincanneal® G2S steel for durability and resistance to the elements
- Quick and easy to install
- Perforated leg for setting into the surrounding wall lining and can be painted over to match the wall finish
- Available in a range of different widths

Resources

Tech Brief
Product Data Sheet
Wizards
CAD Files

TECH BRIEF

INSPIRE® Architectural Plastering Beads

Click below for Tech Brief 89

Download

PRODUCT DATA SHEET

INSPIRE® Architectural Plastering Beads

Click below to download our Product Data Sheet:

Download

Wizards

INSPIRE® Architectural Plastering Beads

Click more for the wizard tool.

WIZARDS

CAD FILES

(AU) INSPIRE® Architectural Plastering Beads CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components

IMAGE	PART NUMBER	CAD FILE		DESCRIPTION
	I085			Inspire^®End Cap - 85mm for 64mm Stud with one layer 10mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm Special Order Lengths: 2400mm, 3600mm
	I091			Inspire^®End Cap - 91mm for 64mm Stud with one layer 13mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm, 3600mm Special Order Lengths: 2400mm
	I097			Inspire^®End Cap - 97mm for 76mm Stud with one layer 10mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm Special Order Lengths: 2400mm, 3600mm
	I103			Inspire^®End Cap - 103mm for 76mm Stud with one layer 13mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm, 3600mm Special Order Lengths: 2400mm
	I113			Inspire^®End Cap - 113mm for 92mm Stud with one layer 10mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2700mm, 3000mm, 3600mm Special Order Lengths: 2400mm
	I119			Inspire^®End Cap - 119mm for 92mm Stud with one layer 13mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 2400mm, 2700mm, 3000mm, 3600mm
	I125			Inspire^®End Cap - 125mm for 92mm Stud with one layer 16mm plasterboard both sides BMT: 0.75 \| Stock Pack: 50 \| Sub Pack: 1 Available Lengths: 3000mm, 3600mm Special Order Lengths: 2400mm, 2700mm
	REVB020			20mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB025			25mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB030			30mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB035			35mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB040			40mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB045			45mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB050			50mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB060			60mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB065			65mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB075			75mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB080			80mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB090			90mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 100 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB100			100mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 80 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB110			110mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 60 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB120			120mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 60 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
	REVB150			150mm (w) Reveal Bead BMT: 0.75 \| Stock Pack: 60 \| Sub Pack: 1 Available Lengths: 3100mm, 3700mm
