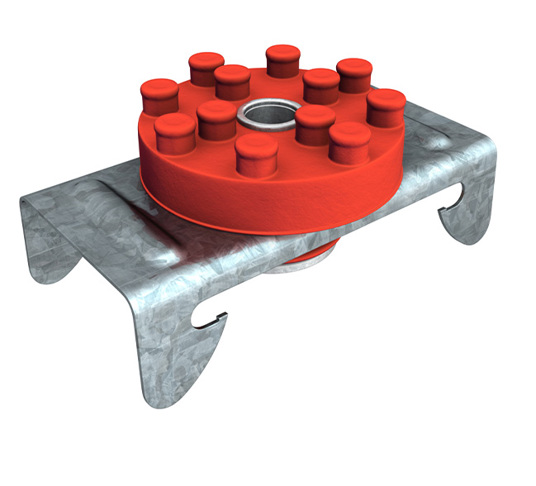

Acoustic Assemblies

Rondo offers a selection of Acoustic Mounts that complement our range of wall and ceiling systems and have been tested to comply with the Australian National Construction Code (NCC) and New Zealand Building Codes (NZBC).

Our new Acoustic Wall & Ceiling Systems Manual shows how our systems comply with all relevant codes and will help designers and engineers to design their next project with confidence.

PRODUCT FEATURES

Airborne & Impact Sound Insulation
Reduction of sound transmission
Versatile
Compatible with Wall and Ceiling systems
Simple Integration
Simple, solid structure

ADVANTAGES
- NCC and NZBC Compliant Acoustic Systems for both walls and ceilings
- Consideration of Airborne & Impact Sound Performance
- Compatibility with each Rondo System
- The range of acoustic mounts and clips incorporates a rubber acoustic pad
- Suitable for a range of wall and ceiling applications
- Rondo's STWC Clip provides impact sound insulation improving the performance of the plasterboard, acoustic batt, wall or ceiling lining
- Quick and easy to install
- Rondo's BETAGRIP Sound Isolation Clip delivers an innovative design which encompasses the above acoustic properties whilst providing adjustment for the level of the plasterboard lining.

DESIGN MANUAL

Acoustic Assemblies

Click below for the Design Manual

Download

PRODUCT DATA SHEET

Acoustic Assemblies

Click below to download our Product Data Sheet:

Download

PROJECTS

Rondo Projects

Click below to view our projects:

VIEW RONDO PROJECTS

CAD FILES

Acoustic Assemblies CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components

IMAGE	PART NUMBER	CAD FILE		DESCRIPTION
	126			Staggered Stud Clip Stock Pack: 500 \| Sub Pack: 100 *Special Order
	581			16mm (h) x 60mm (w) Resilient Channel BMT: 0.55 \| Stock Pack: 200 \| Sub Pack: 10 Available Lengths: 3600
	BG03-NTB			BetaGrip^®3 Acoustic Isolation DFC suits Furring Channel(s) 129,308,309A - No Anchor Bolt Stock Pack: 100 \| Sub Pack: 100
	STDC			Acoustic Isolation DFC - Stud Wall to Masonry/Concrete Stock Pack: 100 \| Sub Pack: 100
	STPC			Acoustic Isolation DFC - 129,308,309A Furring Channel(s) to Timber/Steel Stock Pack: 100 \| Sub Pack: 100
	STSLC			Acoustic Isolation DFC - 129/308/309A Furring Channel - 123, CT06 (40mm), CC06 & 826 Stock Pack: 100 \| Sub Pack: 100 Available Lengths: 65mm, 85mm, 100mm, 120mm, 150mm and 180mm
	STSU			Acoustic Isolation Clip - 125/127/128 Top Cross Rail to 129,308,309A Furring Channel(s) Stock Pack: 100 \| Sub Pack: 100
	STWC			Acoustic Isolation DFC - suits Furring Channel(s) 129,308,309A - 65mm M6 Adjustable Anchor Bolt Stock Pack: 100 \| Sub Pack: 100
	WHIB			Acoustic Isolation Hanger - Blue - 20A Duro Rating Stock Pack: 100 \| Sub Pack: 100
	WHIG			Acoustic Isolation Hanger - Green - 40A Duro Rating Stock Pack: 100 \| Sub Pack: 100
	WHIP			Acoustic Isolation Hanger - Pink - 30A Duro Rating Stock Pack: 100 \| Sub Pack: 100
