Shaftwall One Way Erected System

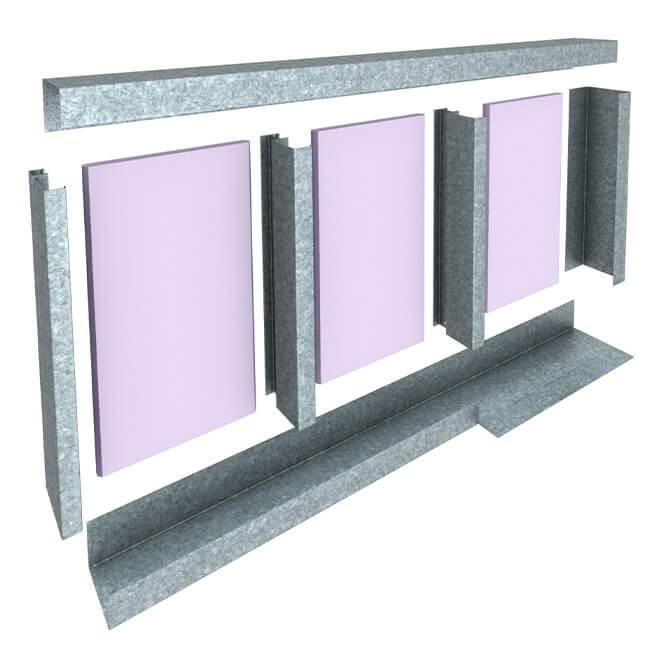

The Rondo SHAFTWALL is a one-way erected wall system that is suitable for both fire-rated and sound-rated applications. The system is designed to encase lift shafts, stairwells and service ducting in low and high-rise construction areas.

PRODUCT FEATURES

  • Fire-rated and Acoustic Design
    Available for Fire-rated and Acoustic applications
  • Simple Integration
    Screw and adhesive fixed so there is no need for welding or bolting
  • Efficient
    Reduces labour time
  • INTRODUCTION TO OUR SHAFTWALL SYSTEM

    The Rondo SHAFTWALL is a one-way erected wall system that is suitable for both fire-rated and sound-rated applications. The system is designed to encase lift shafts, stairwells and service ducting in low and high-rise construction areas.

  • ADVANTAGES
    • Rapid installation with no need to gain access within the shaft.
    • The SHAFTWALL System is most appropriate for lift shafts and stairwells as well as service ducts.
    • All components are screw and adhesive fixed so there is no need for welding or bolting, saving labour time.
    • Rondo SHAFTWALL System are both acoustic and fire rated.

Resources

PRODUCT DATA SHEET

Shaftwall One Way Erected System

Click below to download our Product Data Sheet:

Download

PROJECTS

Rondo Projects

Click below to view our projects:

View Rondo Projects

CAD FILES

Shaftwall One Way Erected System CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components

IMAGE PART NUMBER CAD FILE DESCRIPTION
Channel 341 Persp 2023 341

28mm (w) x 60mm & 40mm (uneven leg) 'J' Track
BMT: 0.55 | Stock Pack: 100 | Sub Pack: 100
Available Lengths: 3000mm
570, 572, 574, 590, 592, 594 CH Stud 570

64mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 50 | Sub Pack: 1
Available Lengths: 3000mm, 3600mm
570, 572, 574, 590, 592, 594 CH Stud 572

64mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.90 | Stock Pack: 50 | Sub Pack: 1
Available Length: 4500mm
E Stud 574

64mm (w) x 26mm (h) ‘E’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 100 | Sub Pack: 1
Available Lengths: 3000mm, 3600mm
578, 598 J Runner Track 578

64mm (w) x 57mm & 25mm (uneven leg) ‘J’ Runner Track to suit 570/572/574 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Available Length: 3000mm
579, 599 Deflection Head Track 579

64mm (w) x 75mm & 50mm (uneven leg) Deflection Head Track to suit 570/572/574 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 3000mm
570, 572, 574, 590, 592, 594 CH Stud 590

102mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 50 | Sub Pack: 1
Special Order Lengths: 3000mm, 3600mm, 4300mm
570, 572, 574, 590, 592, 594 CH Stud 592

102mm (w) x 35mm (h) ‘CH’ Stud to suit 25mm Board
BMT: 0.90 | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 3000mm, 3600mm, 5500mm
570, 572, 574, 590, 592, 594 CH Stud 594

102mm (w) x 26mm (h) ‘E’ Stud to suit 25mm Board
BMT: 0.55 | Stock Pack: 100 | Sub Pack: 1
Special Order Lengths: 3000mm, 3600mm, 4300mm
578, 598 J Runner Track 598

102mm (w) x 75mm & 25mm (uneven leg) ‘J’ Runner Track to suit 590/592/594 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Available Length: 3000mm
579, 599 Deflection Head Track 599

102mm (w) x 75mm & 50mm (uneven leg) Deflection Head Track to suit 590/592/594 Studs
BMT: 0.80 | Stock Pack: 50 | Sub Pack: 1
Special Order Length: 3000mm
