Xpress® Drywall Grid Ceiling System

The Rondo Xpress^® Drywall Grid Ceiling System is light-weight and simple to install.

The Main Tee and Cross Tee connection uses the same patented QRC clip technology that is known and preferred by installers.

With an ability to be used in acoustic, seismic and fire-rated applications, the Rondo Xpress^® Drywall Grid Ceiling System offers design flexibility for flush plasterboard ceilings, bulkheads and boxed soffits.

PRODUCT FEATURES

Seismic Design
Available for Seismic applications
Fire-rated and Acoustic Design
Available for Fire-rated and Acoustic applications
Simple Integration
For Light fixtures, Air conditioning services and Access panels

WHAT YOU'LL LIKE ABOUT OUR XPRESS® CEILING SYSTEM
- Surface Finish: Z275 galvanised
- Low profile with 38mm wide face
- Integration with Rondo DONN^® Exposed Grid Ceiling System
- Simple Integration of conventional light fixtures, air conditioning services and access panels
- Main Tee and Cross Tee clips have a secure connection and are easy to remove and relocate
WHAT IS THE XPRESS® CEILING SYSTEM IS SUITABLE FOR
- Concealed ceiling systems
- Plasterboard, fibrous plaster and fibre cement linings
- Direct fix or fully suspended applications
- Seamless transition from a concealed to exposed grid ceiling
- Bulkheads and boxed soffits
- Corridors, without the use of suspension hangers
- Fire-rated applications
- Seismic requirements
- Acoustic ceiling solutions

INSTALLATION GUIDE

Xpress® Drywall Grid Ceiling System

Click below for the Design Manual

DOWNLOAD

PRODUCT DATA SHEET

Xpress® Drywall Grid Ceiling System

Click below to download our Product Data Sheet:

Download

PROJECTS

Rondo Projects

Click below to view our projects:

VIEW RONDO PROJECTS

CAD FILES

Xpress® Drywall Grid Ceiling System CAD FILES

Assisting you with the design process, we’ve put together a library of DXF files for most of our products.

DOWNLOAD INDIVIDUAL CAD FILES

Components

IMAGE	PART NUMBER	CAD FILE		DESCRIPTION
	121			Ø5.0mm Soft Galvanised Suspension Rod Stock Pack: 1000 \| Sub Pack: 50 Available Lengths: 3600mm
	122			Ø5.3mm Soft Galvanised Suspension Rod – M6 Thread at one end Stock Pack: 50 \| Sub Pack: 50 Available Lengths: 300mm, 450mm, 600mm, 900mm, 1200mm, 1800mm, 2400mm, 3600mm
	247			60mm (h) x 25mm (w) x 21mm (l) Bracket – 121 Rod to Masonry/ Concrete Stock Pack: 400 \| Sub Pack: 100
	274			80mm (h) x 25mm (w) Bracket – 121 Rod to Timber/Steel Stock Pack: 500 \| Sub Pack: 100
	534			110mm (h) x 38mm (w) Adjustable Suspension Bracket – 121 Rod to Timber/Steel Stock Pack: 250 \| Sub Pack: 250
	547			78mm (h) x 38mm (w) Adjustable Suspension Bracket – 121 Rod to Masonry/Concrete Stock Pack: 250 \| Sub Pack: 250
	553			35mm (h) x 35mm (w) Wall Angle Stock Pack: 250 \| Sub Pack: 10 Available Length: 3600mm
	826			M6 Nut – Suits 122 Threaded Rod Stock Pack: 500 \| Sub Pack: 200
	DXCL			Adjustable Suspension Clip - 121 Rod to Main Tee Stock Pack: 500 \| Sub Pack: 1
	DXDF			Direct Fix Strap Stock Pack: 500 \| Sub Pack: 500
	SA12			40mm (h) x 40mm (w) Wall Angle BMT: 1.15 \| Stock Pack: 6 \| Sub Pack: 6 Available Lengths: 3000mm
	THE-Clip® (275)			Direct Fixing Clip – ‘THE-Clip®’ to Concrete - 220mm (h) Stock Pack: 100 \| Sub Pack: 100
	THE-Clip® (283)			Direct Fixing Clip – ‘THE-Clip®’ to Concrete (C2) - 220mm (h) Stock Pack: 250\| Sub Pack: 250
	WASL			27mm (h) x 10mm (w) x 10 (h) x 19mm (w) Shadowline Long Leg Wall Angle BMT: 0.50 \| Stock Pack: 24 \| Sub Pack: 24 Available Lengths: 3600mm
	XD1			38mm (h) x 38mm (face) Main Tee BMT: 0.38 \| Stock Pack: 12 \| Sub Pack: 12 Available Length: 3600mm
	XD10			Transition Clip – 90° Stock Pack: 50 \| Sub Pack: 1
	XD11			Acoustical Transition Clip – Rondo XPRESS^® to Rondo DONN^® Stock Pack: 500 \| Sub Pack: 1
	XD12			100mm Fascia Drywall Clip Stock Pack: 500 \| Sub Pack: 1
	XD13			150mm Fascia Drywall Clip Stock Pack: 500 \| Sub Pack: 1
	XD14			200mm Fascia Drywall Clip Stock Pack: 500 \| Sub Pack: 1
	XD16			Main Tee Separation Joint Clip Stock Pack: 100 \| Sub Pack: 1
	XD17			Seismic Clip Stock Pack: 100 \| Sub Pack: 1
	XD19			Strongback Clip Stock Pack: 500 \| Sub Pack: 1
	XD1H			38mm (h) x 38mm (face) Heavy Gauge Main Tee BMT: 0.50 \| Stock Pack: 12 \| Sub Pack: 12 Available Length: 3600mm

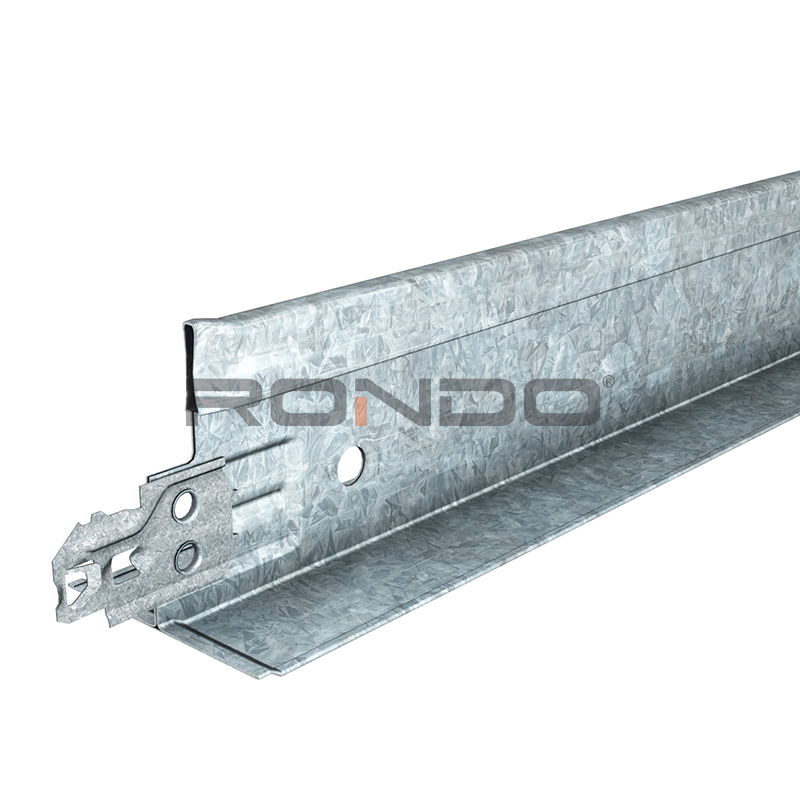

	XD2			38mm (h) x 38mm (face) Cross Tee BMT: 0.38 \| Stock Pack: 36 \| Sub Pack: 36 Available Lengths: 600mm, 1200mm, 1250mm, 1500mm, 1600mm
	XD28			Direct Fix Clip – 180mm Extenion Strip Stock Pack: 500 \| Sub Pack: 100
	XD3			38mm (h) x 24mm (face) Main Tee BMT: 0.38 \| Stock Pack: 12 \| Sub Pack: 12 Available Length: 3600mm
	XD36			3-Way Off-Module Connector Stock Pack: 100 \| Sub Pack: 1
	XD3H			38mm (h) x 24mm (face) Heavy Gauge Main Tee BMT: 0.50 \| Stock Pack: 12 \| Sub Pack: 12 Available Lengths: 3600mm
	XD5			40mm (h) x 40mm (w) Wall Angle BMT: 0.55 \| Stock Pack: 12 \| Sub Pack: 12 Available Lengths: 3600mm
	XD6			40mm (h) x 38mm (w) x 19mm (w) Perimeter Channel BMT: 0.55 \| Stock Pack: 12 \| Sub Pack: 12 Available Length: 3600mm
	XDSC			Splice Clip – 180° Stock Pack: 50 \| Sub Pack: 1
	XDWH			38mm (h) x 38mm (face) Heavy Gauge Wall to Wall Main Tee BMT: 0.55 \| Stock Pack: 12 \| Sub Pack: 12 Available Length: 2200mm
	XDWS			38mm (h) x 38mm (face) Wall to Wall Main Tee BMT: 0.38 \| Stock Pack: 12 Sub Pack: 12 Available Length: 1600mm
